Insert strips, with inlet channels (Inlet Opening System), PC-Membrane, strips of 4, for 24/6-well BRANDplates®, BIO-CERT® CELL CULTURE QUALITY, sterile

Innovative cell culture plates and inserts for manual and automatic cell and tissue culture!

The BRANDplates® Insert System, developed in conjunction with the Fraunhofer company, offers an innovative expansion to BRAND's existing cell culture product range.

It consists of two different cell culture plates and two designs of cell culture inserts that can be combined in different configurations.

Insert specification:

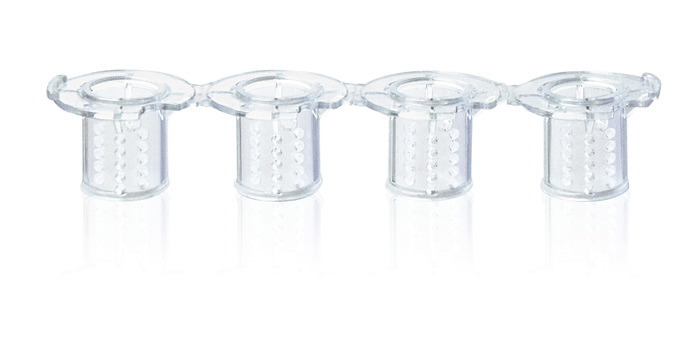

4x insert strips, can be divided into up to 4 individual inserts - hanging position in well

Hanging inserts – distance between the well base and insert membrane is 4 mm

Individually packaged strips inserted in thermoformed beakers with 6 strips each in the 6-well cell culture plate

cellGrade plus (hydrophilic cell culture-) surface.

Inserts with inlet channels: Inserts with special inlet channels (Inlet Opening System) are used for the automated in vitro preparation of human tissues. The Inlet Opening System enables rapid, consistent changing of media, from submersion culture to air-lift culture. The special inlet channels enable adjustment of the medium level without damage to the skin model.
PS. cellGrade plus surface, sterile. Strip of 4 inserts (divisible).

BIO-CERT® CELL CULTURE QUALITY: Free of human DNA, RNase, DNase, Pyrogens and non cytotoxic

Choose your product:

Insert height:
13 mm
9 mm
Pore size:
0,4 µm
1 µm
3 µm
8 µm
Grouped product items
Cat.-No. Insert height Pore size
782801 13 mm 0,4 µm
782821 13 mm 1 µm
782841 13 mm 3 µm
782861 13 mm 8 µm
782901 9 mm 0,4 µm
Grouped product items
pack* Price per From** Price***
1 pack = 12 piece(s) 1 pack 1 332,40 € available from stock
1 pack = 12 piece(s) 1 pack 1 332,40 € available from stock
1 pack = 12 piece(s) 1 pack 1 332,40 € available from stock
1 pack = 12 piece(s) 1 pack 1 332,40 € available from stock
1 pack = 12 piece(s) 1 pack 1 365,75 € available soon
* Packing Unit
** Minimum order quantity
*** Recommended sales price without VAT
available from stock available from stock
available soon available soon
